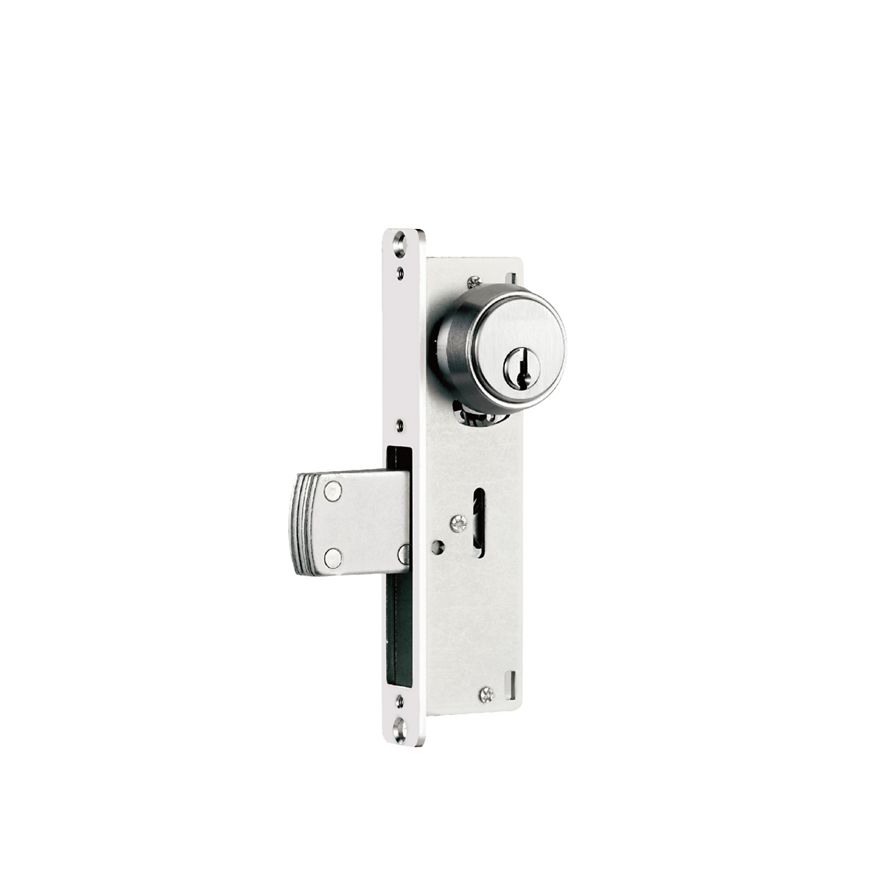

ASD-400

Swingbolt Deadlock

Features

ㆍ It is a product produced based on ANSIA 156.5 standards
ㆍ Door Hardware used for the Narrow Style Glass Door
ㆍ The backset is 29mm, so it can be installed on a narrow door frame, and the 1-3/8" (35mm) Straight bolt maintains security
ㆍ It is easy to install because it is attached to the portion where the push-pull handle of the tempered glass door is installed

ㆍ ASD-400 : Lockbody
ㆍ ABC-100 : Mortise cylinder
ㆍ ABT-100 : Thumbturn cylinder

Specification

ㆍ Door Thickness : 1-3/8” (35mm) ~ 1-3/4” (45mm)
ㆍ Keying : Solid Brass 6Pins cylinder
ㆍ Backset : 1-1/8"(29mm)
