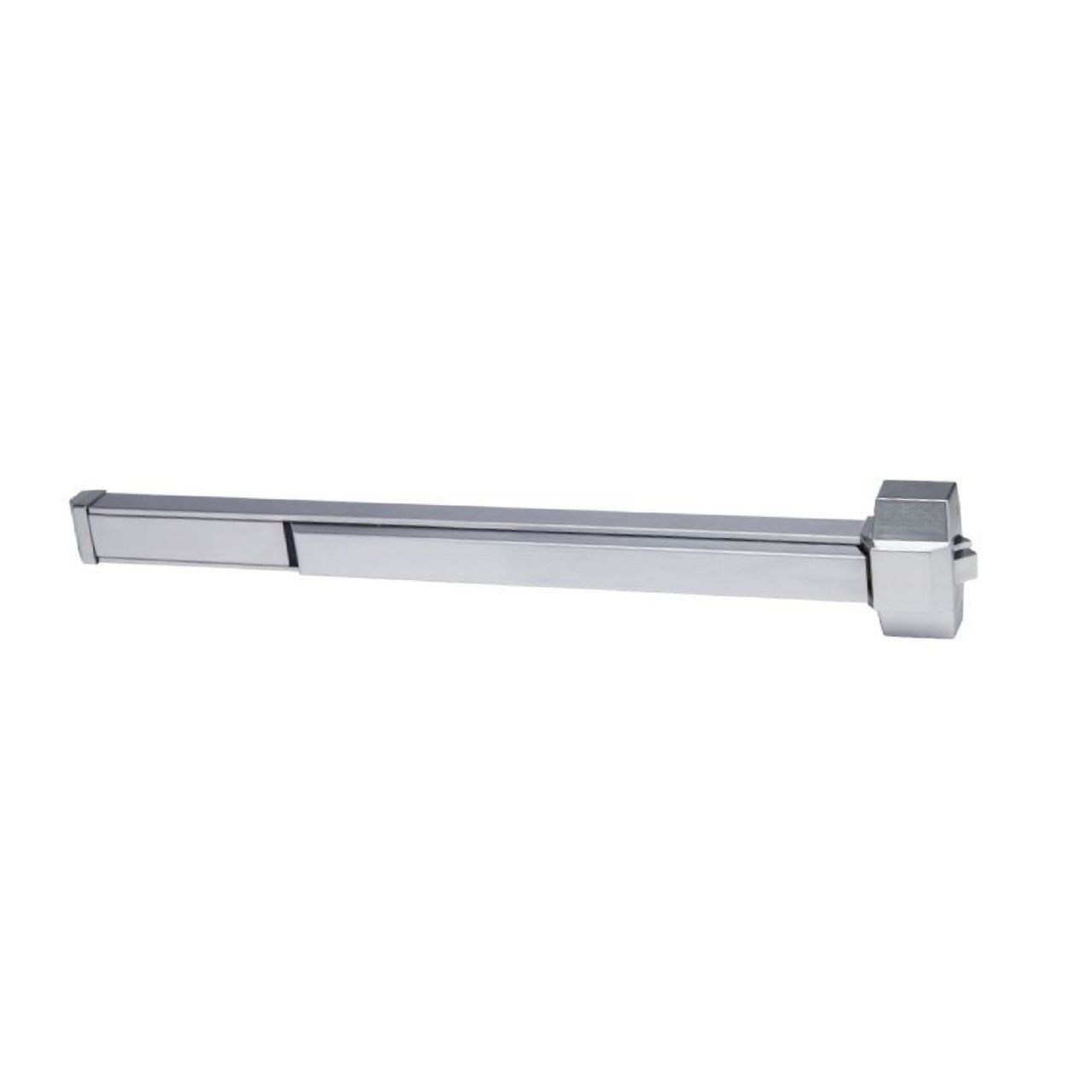

AED-3000 SS

Exit Device series

Rim type

Features

ㆍ It maintains durability more than 500,000 times with the US Industrial Standard ansia 156.3 grade1 certified and bhma listed products
ㆍ UL305 Panic Safety Hardware
ㆍ Korea's one-hour fire proof
ㆍ In case of emergency escape such as fire, push bar opens the door and makes it easy to escape
ㆍ It is applied mainly to fire doors and emergency entrances used in commercial and public buildings

Specification

ㆍ Door Width: 760~910mm Standard door, 910~1220mm Wide door
ㆍ Door Thickness : 38~45mm Standard door
ㆍ Minimum door stile width : 35mm
ㆍ Push bar projection : 60mm active, 45mm depressed
ㆍ Latchbolt : Protrude length 19mm
ㆍ Dogging feature : Hex key dogging standard
